Monday, March 19, 2018

Thoughts about the APEX_UTIL package

The APEX_UTIL package in Oracle Application Express is a mixed bag of "miscellaneous" stuff.

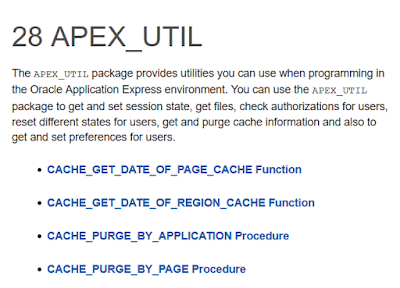

From the documentation: "You can use the APEX_UTIL package to get and set session state, get files, check authorizations for users, reset different states for users, get and purge cache information and also to get and set preferences for users."


It's clear that, over time, a lot of stuff has been placed here that really belongs elsewhere, or in its own package. By splitting up this package, it should be easier for the developer to find the functions and procedures he is looking for.

Here are my thoughts on how the APEX_UTIL package could be refactored. I'm not saying remove all this from the package in the next APEX release, but move the code to new/other packages and just leave wrappers in the APEX_UTIL package that call the new package, so that old code continues to work. Mark these as deprecated in the docs, and maybe remove after a few more releases.

Move to a new APEX_CACHE package:

  CACHE_GET_DATE_OF_PAGE_CACHE Function
  CACHE_GET_DATE_OF_REGION_CACHE Function
  CACHE_PURGE_BY_APPLICATION Procedure
  CACHE_PURGE_BY_PAGE Procedure
  CACHE_PURGE_STALE Procedure
  CLEAR_APP_CACHE Procedure
  CLEAR_PAGE_CACHE Procedure
  CLEAR_USER_CACHE Procedure
  PURGE_REGIONS_BY_APP Procedure
  PURGE_REGIONS_BY_NAME Procedure
  PURGE_REGIONS_BY_PAGE Procedure

Move to a new APEX_USER package:

  CHANGE_CURRENT_USER_PW Procedure
  CHANGE_PASSWORD_ON_FIRST_USE Function
  CREATE_USER Procedure
  CREATE_USER_GROUP Procedure
  CURRENT_USER_IN_GROUP Function
  DELETE_USER_GROUP Procedure Signature 1
  DELETE_USER_GROUP Procedure Signature 2
  EDIT_USER Procedure
  END_USER_ACCOUNT_DAYS_LEFT Function
  EXPIRE_END_USER_ACCOUNT Procedure
  EXPIRE_WORKSPACE_ACCOUNT Procedure
  EXPORT_USERS Procedure
  FETCH_USER Procedure Signature 1
  FETCH_USER Procedure Signature 2
  FETCH_USER Procedure Signature 3
  GET_FIRST_NAME Function
  GET_LAST_NAME Function
  GET_USER_ID Function
  GET_USER_ROLES Function
  GET_USERNAME Function
  GET_EMAIL Function
  SET_USERNAME Procedure
  SET_EMAIL Procedure
  SET_FIRST_NAME Procedure
  SET_LAST_NAME Procedure
  LOCK_ACCOUNT Procedure
  PASSWORD_FIRST_USE_OCCURRED Function
  UNEXPIRE_END_USER_ACCOUNT Procedure
  UNEXPIRE_WORKSPACE_ACCOUNT Procedure
  UNLOCK_ACCOUNT Procedure
  WORKSPACE_ACCOUNT_DAYS_LEFT Function
  STRONG_PASSWORD_CHECK Procedure
  STRONG_PASSWORD_VALIDATION Function
  GET_ACCOUNT_LOCKED_STATUS Function
  REMOVE_USER Procedure
  RESET_AUTHORIZATIONS Procedure [DEPRECATED]
  PUBLIC_CHECK_AUTHORIZATION Function [DEPRECATED]
  RESET_PASSWORD Procedure
  RESET_PW Procedure
  GET_AUTHENTICATION_RESULT Function
  SET_AUTHENTICATION_RESULT Procedure
  SET_CUSTOM_AUTH_STATUS Procedure
  GET_GROUPS_USER_BELONGS_TO Function
  GET_GROUP_ID Function
  GET_GROUP_NAME Function
  SET_GROUP_GROUP_GRANTS Procedure
  SET_GROUP_USER_GRANTS Procedure
  IS_LOGIN_PASSWORD_VALID Function
  IS_USERNAME_UNIQUE Function
  GET_ATTRIBUTE Function
  SET_ATTRIBUTE Procedure

Move to a new APEX_PRINT package:

  DOWNLOAD_PRINT_DOCUMENT Procedure Signature 1
  DOWNLOAD_PRINT_DOCUMENT Procedure Signature 2
  DOWNLOAD_PRINT_DOCUMENT Procedure Signature 3
  DOWNLOAD_PRINT_DOCUMENT Procedure Signature 4
  GET_PRINT_DOCUMENT Function Signature 1
  GET_PRINT_DOCUMENT Function Signature 2
  GET_PRINT_DOCUMENT Function Signature 3
  GET_PRINT_DOCUMENT Function Signature 4

Move to APEX_IR package (this has already been done):

  IR_CLEAR Procedure [DEPRECATED]
  IR_DELETE_REPORT Procedure [DEPRECATED]
  IR_DELETE_SUBSCRIPTION Procedure [DEPRECATED]
  IR_FILTER Procedure [DEPRECATED]
  IR_RESET Procedure [DEPRECATED]

Move to APEX_SESSION package:

  GET_SESSION_LANG Function
  GET_SESSION_STATE Function
  GET_SESSION_TERRITORY Function
  GET_SESSION_TIME_ZONE Function
  SET_SESSION_HIGH_CONTRAST_OFF Procedure
  SET_SESSION_HIGH_CONTRAST_ON Procedure
  SET_SESSION_LANG Procedure
  SET_SESSION_LIFETIME_SECONDS Procedure
  SET_SESSION_MAX_IDLE_SECONDS Procedure
  SET_SESSION_SCREEN_READER_OFF Procedure
  SET_SESSION_SCREEN_READER_ON Procedure
  SET_SESSION_STATE Procedure
  SET_SESSION_TERRITORY Procedure
  SET_SESSION_TIME_ZONE Procedure
  GET_EDITION Function
  SET_EDITION Procedure
  SET_SECURITY_GROUP_ID Procedure
  FETCH_APP_ITEM Function
  GET_NUMERIC_SESSION_STATE Function
  GET_CURRENT_USER_ID Function
  IS_HIGH_CONTRAST_SESSION Function
  IS_HIGH_CONTRAST_SESSION_YN Function
  IS_SCREEN_READER_SESSION Function
  IS_SCREEN_READER_SESSION_YN Function
  SET_CURRENT_THEME_STYLE Procedure [DEPRECATED]
  GET_DEFAULT_SCHEMA Function
  SET_WORKSPACE_Procedure

Move to APEX_EXPORT package:

  GET_SUPPORTING_OBJECT_SCRIPT Function
  GET_SUPPORTING_OBJECT_SCRIPT Procedure

Move to APEX_PAGE package:

  GET_HIGH_CONTRAST_MODE_TOGGLE Function
  GET_SCREEN_READER_MODE_TOGGLE Function
  SHOW_HIGH_CONTRAST_MODE_TOGGLE Procedure
  SHOW_SCREEN_READER_MODE_TOGGLE Procedure

Leave in APEX_UTIL (for now):

  CLOSE_OPEN_DB_LINKS Procedure
  COUNT_CLICK Procedure
  CUSTOM_CALENDAR Procedure
  INCREMENT_CALENDAR Procedure
  SUBMIT_FEEDBACK Procedure
  SUBMIT_FEEDBACK_FOLLOWUP Procedure
  GET_FEEDBACK_FOLLOW_UP Function
  STRING_TO_TABLE Function [DEPRECATED]
  TABLE_TO_STRING Function [DEPRECATED]
  SAVEKEY_NUM Function
  SAVEKEY_VC2 Function
  KEYVAL_NUM Function
  KEYVAL_VC2 Function
  HOST_URL Function
  URL_ENCODE Function
  REDIRECT_URL Procedure
  PREPARE_URL Function
  GET_HASH Function
  GET_SINCE Function
  GET_PREFERENCE Function
  SET_PREFERENCE Procedure
  REMOVE_PREFERENCE Procedure
  REMOVE_SORT_PREFERENCES Procedure
  GET_BUILD_OPTION_STATUS Function Signature 1
  GET_BUILD_OPTION_STATUS Function Signature 2
  SET_BUILD_OPTION_STATUS Procedure
  GET_BLOB_FILE_SRC Function
  GET_FILE Procedure
  GET_FILE_ID Function
  HTML_PCT_GRAPH_MASK Function
  FIND_SECURITY_GROUP_ID Function
  FIND_WORKSPACE Function
  GET_APPLICATION_STATUS Function
  GET_GLOBAL_NOTIFICATION Function
  SET_GLOBAL_NOTIFICATION Procedure
  SET_APP_BUILD_STATUS Procedure
  SET_APPLICATION_STATUS Procedure



These are just my suggestions, but I do hope the APEX developer team will do some kind of refactoring (even if not exactly as suggested above) in future releases of APEX.

If you would like to see it done differently, please leave feedback in the comment field below! :-)




Sunday, February 25, 2018

APEX Authentication with Microsoft account

In the upcoming Oracle Application Express (APEX) 5.2 release, support has been added for so-called "Social Sign-In" authentication. This means that your users can login to an APEX application using an external authentication provider. In APEX 5.2, there is built-in support for Google and Facebook accounts. There is also support for "Generic OAuth Providers" and "OpenID Connect Providers". This blog post describes how you can use the "OpenID Connect Provider" to set up authentication with a Microsoft account, such as an Outlook.com account.



Here is how to do it:

A. Register the APEX application with Microsoft


1. Go to Microsoft Application Registration Portal. Note that you need a Microsoft account, such as an Outlook.com email account, to login and use this portal:

https://apps.dev.microsoft.com/

2. Add an app (enter a descriptive name, your users will see this name during the consent prompt in step 20 below). An Application ID gets generated. Click "Generate New Password" to generate a password.

3. Click "Add platform" and choose "Web". Enter the APEX callback URL as the "Redirect URL", for the APEX 5.2 Early Adopter this is:

https://apexea.oracle.com/pls/apex/apex_authentication.callback

4. Add the URL of the APEX app as the "Home Page URL":

https://apexea.oracle.com/pls/apex/f?p=your_app_alias:10


5. Click "Save"


B. Setup APEX Credentials




6. In APEX, go to Shared Components and click on "Credentials"

7. Create a new Credential and give it a name (for example "Azure OpenID Credentials"). Select "OAuth2 Client Credentials Flow" as the credential type.

8. Add the Application ID from step 2 above as the "Client ID", and the password from step 2 above as the "Client Secret".

9. Save the credentials.

C. Setup APEX Authentication Scheme




10. Go to Shared Components and click on "Authentication Schemes"

11. Create a new authentication scheme and give it a name (for example "Azure AD OpenID"). Select "Social Sign-In" as the scheme type.

12. As credential store, select the credentials created in step 9 ("Azure OpenID Credentials").

13. As authentication provider, select "OpenID Connect Provider".

14. As discovery URL, use the following:

https://login.microsoftonline.com/common/v2.0/.well-known/openid-configuration

15. As scope, type "email" (without the quotes)

16. As username attribute, type "email" (without the quotes)

17. Save the authentication scheme.

D. Test the Login




18. Go to the home page of your application:

https://apexea.oracle.com/pls/apex/f?p=your_app_alias:10

19. You should be redirected to a Microsoft login page. Log in with a Microsoft account (such as yourname@outlook.com).

20. You should be prompted to allow the APEX application to log you in and retrieve your email address to identify you. Accept this.

21. You should see the home page of your APEX application, and the value of APP_USER should now be equal to the email address you logged in with at Microsoft.

Switching between authentication schemes in the same APEX session


APEX version 5.2 also includes a new attributte for authentication schemes called "Switch in Session" that can be either Enabled or Disabled. If enabled, the current session's authentication scheme can be changed by passing APEX_AUTHENTICATION=scheme name in a URL's request parameter.



You can use this to present users with multiple login options. For example, you can have the standard APEX Authentication (or your own table-based authentication) set as the current authentication scheme, and then add another button to the login page which switches the authentication scheme to the Microsoft scheme (or Facebook, or Google, etc).


The screenshot above shows an example of a standard APEX login page where I have added an extra button (called "LOGIN_MICROSOFT"), set the icon CSS class to "fa-windows" to get the Windows logo on the button, and set the action attribute of the button to redirect to page 10 (the home page of the application) and also setting the request of the link to "APEX_AUTHENTICATION=name_of_microsoft_auth_scheme". Clicking this button should redirect to a Microsoft page for login, and then redirect the user back to the requested page.

Wednesday, February 21, 2018

Using the Slack webhook API from PL/SQL

Slack is a web-based chat room popular with many companies. Slack also has an API that can be used to post messages to a given "channel" or chat room. The simplest API offered is the "webhook" integration, which is "a simple way to post messages from external sources into Slack. They make use of normal HTTP requests with a JSON payload that includes the message text and some options."



To create a new Slack webhook, login to Slack and go to "Apps" in the left sidebar menu. Click "Manage apps..." and click "Custom Integrations" and then "Incoming Webhooks". Click on "Add Configuration" to create a new webhook. Specify the channel the webhook will post in, and click "Add incoming webhooks integration".


Next, take a note of the Webhook URL:



Then go to the Alexandria PL/SQL Utility Library and install the SLACK_UTIL_PKG package in your database schema. Modify your database Network ACL settings to include "hooks.slack.com" (port 443) to allow connections to the Slack site from the database.

Then use the package like this (see also demo script):



In addition to application-specific messages you could perhaps also set up the database (via a background job) to notify you when you are about to run out of disk space, when the number of APEX page views reach a certain threshold, when a specific user logs in, and so on. Use your imagination! :-)





Saturday, February 10, 2018

Pivot Table plugin for APEX (Updated)

Some years ago I created an APEX region plugin for displaying the results of a query as a Pivot Table. You can read the original blog post about that here.

The plugin proved quite popular, but people were having problems using it with APEX 5 due to a jQuery versioning conflict.

I've now updated the plugin so it works with APEX, both 5.0 and 5.1.



To use it, simply add a region to the page, change the region type to "Pivot Table" and write an SQL query as the region source:



On the region attributes page, specify the options. I've added some help text to explain the various options. Note that you can have more than one Pivot Table region on the same page, but be sure to use a unique name in the "DOM Element Name" attribute for each pivot table.


I've also added/enabled some extra features such as spreadsheet export (via TSV - tab separated values) and charting.



It should be noted that the plugin is just an APEX wrapper for the Javascript Pivot Table component by Nicolas Kruchten who did all the hard work. I merely packaged it up for use with APEX.

You can download the plugin from my APEX plugins page. Enjoy! :-)
